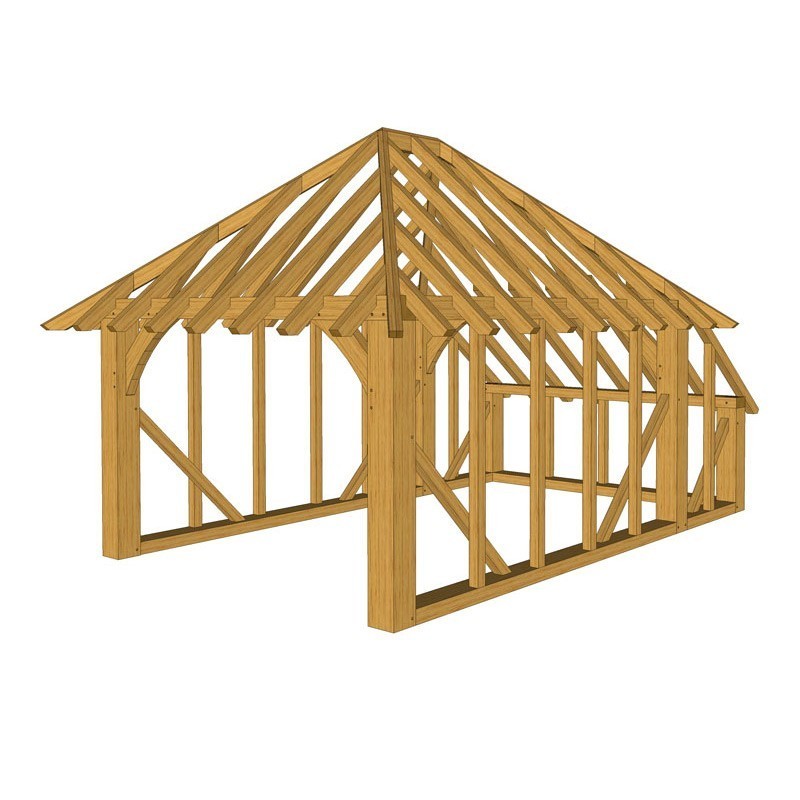

Belle Arrivee
The dimensions of the 1-bay variant of this product are as follows:
- Width: 3m115
- Depth: 3m80 + 1m20 = 5m00
- Height: 3m395
- Height total 3m395 + 0m23m = 3m625
- Height entrance: 1m87+ 0m23 = 2m10
- Width entrance : 2m685
- Front Posts (main): 215mm x 200mm
- Head Plate: 150mm x 200mm
- Rafters: 75mm x 100mm
To be mounted on 0m230 plinth
The dimensions of the 2-bay variant of this product are as follows:
- Width: 6m00
- Depth: 3m80 + 1m20 = 5m00
- Height: 3m95
- Height entrance: 1m87+ 0m23 = 2m10
- Width entrance : 2m685
- Front Posts (main): 215mm x 200mm
- Head Plate: 150mm x 200mm
- Tie Beam: 150mm x 200mm
- Rafters: 75mm x 100mm
To be mounted on 0m230 plinth
The dimensions of the 2-bay with side section variant of this product are as follows:
- Width: 6m00 + 1m20 = 7m20
- Depth: 3m80 + 1m20 = 5m00
- Height: 3m95
- Height entrance: 1m87+ 0m23 = 2m10
- Width entrance : 2m685
- Front Posts (main): 215mm x 200mm
- Head Plate;: 150mm x 200mm
- Tie Beam: 150mm x 200mm
- Rafters: 75mm x 100mm
To be mounted on 0m230 plinth
The dimensions of the 3-bay variant of this product are as follows:
- Width: 8m85
- Depth: 5m00
- Height: 3m719
- Height total 3m719 + 0m23m = 3m949
- Height entrance: 1m87+ 0m23 = 2m10
- Width entrance: 2m685
- Front Posts (main): 215mm x 200mm
- Front Posts (centre): 200mm x 200mm
- Head Plate front: 150mmx200mm
- Head Plate sides: 150mm x 200mm
- Tie Beams: 200mm x 200mm
- Rafters: 75mm x 100mm
To be mounted on 0m230 plinth
